Machine Name: MACH VS1

YOM: NEW

Stock Number: N/A

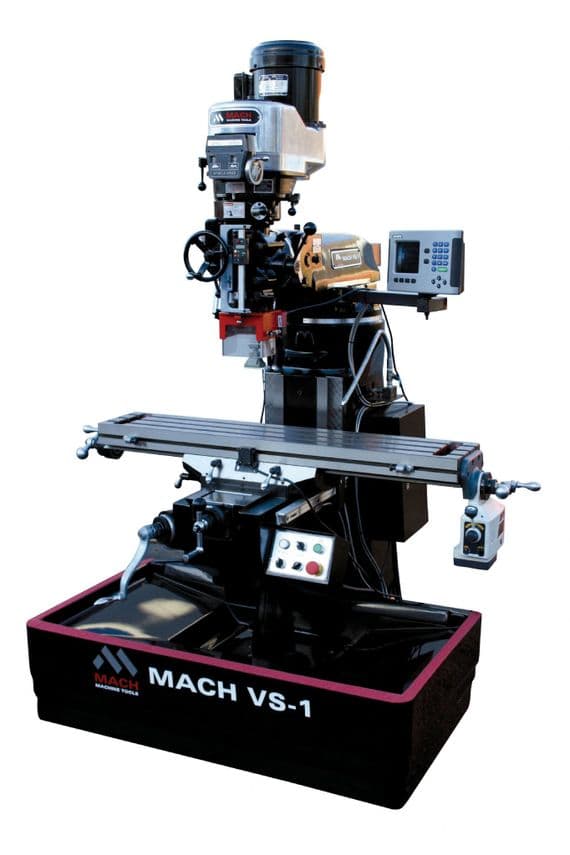

The New MACH VS-1 Turret Milling Machines from MACH Machine Tools Ltd, the new force in the machine tools sector, have now arrived in the UK. Providing precision component manufacturers with out-of-this-world performance at a distinctly down-to-earth price, these machines are built to the highest standards and are both accurate and reliable. Fully CE compliant and supplied with a comprehensive list of standard features unprecedented in today’s market, these machines have a top-end technical specification that includes: a variable speed R8 spindle, Newall DP 500 Digital Readout, variable speed to the X and Y axis, low voltage light, coolant equipment and a stand-on style base splash tray...and are raring and ready to go! The machines are also supplied with a full operator and maintenance manual pack and a 12 months parts and labour warranty for additional peace of mind. If you’re in the market for a new Turret milling machine that delivers more than you thought for a lot less than you think – check-out our new MACH

HIGHLIGHTS
• Variable speed to the X and Y axis for increased flexibility and capabilities.
• Large capacity 48” x 9” (1219.2 mm x 228.6 mm) work table.
• Variable feed with rapid over-ride to the X-axis for improved performance, higher productivity and longer tool life.
• Chrome slide-ways with hardened table top and tee slots for prolonged life.
• Newall DP 500 Programmable 2 axis DRO with Newall spherosyn LT encoders for high precision.
• A Silvaflame Cleervue interlocked spindle mounted safety guard.

MACHINE SPECIFICATIONS • Table travel (X-axis): 800 mm (with power feed) • Saddle travel (Y-axis): 305 mm • Quill travel: 127 mm • Worktable (standard): 1219 x 299 mm • Centre distance: 64 mm centres • T-Slot size: 16 mm • Height above floor (Max.): 1200 mm • Weight of workpiece (Max.): 340 kg • Boring range: 152 mm Mild Steel • Spindle diameter: 48 mm • Speed, high (infinitely variable): 500-4200 rpm • Speed, low (infinitely variable): 60-500 rpm • Floor space: 2.5 x 1.6 m • Machine height: 2.15 m • Machine weight: 885 kg

OPTIONS AVAILABLE Acu-Rite 200s 3-axis DRO Air powered drawbar Quill star (Quill readout) Z axis power feed Servo Products USA VFD upgrade package, includes: - Servo Products variable frequency drive with spindle brake (50-5000rpm) - Servo Products air driven hi-torque 1038 power drawbar - Servo Products type 150 intelligent power feed to X and Y axis Note: fitted in lieu of standard MACH VS-1 equipment
